Name of components and information displayed on the screen (PowerShot G7X)
Solusi
PowerShot G7 X

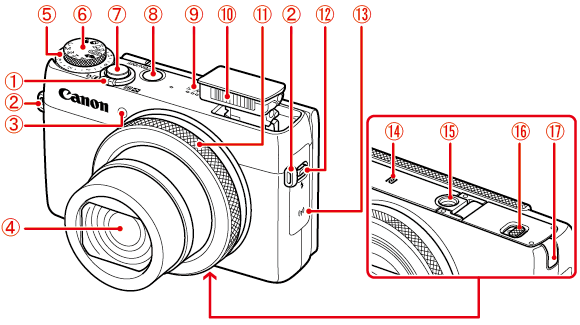

 | Zoom lever Shooting: [  (telephoto)] / [  (wide angle)]Playback: [  (magnify)] / [  (index)] |  | Flash |
 | Strap mount |  | Control ring |
 | Lamp |  | [  (Flash up)] switch |
 | Lens |  | Wi-Fi antenna area |
 | Exposure compensation dial |  |  (N-Mark)*1 |
 | Mode dial |  | Tripod socket |
 | Shutter button |  | Memory card/battery cover |
 | Power button |  | DC coupler terminal cover |
 | Speaker |

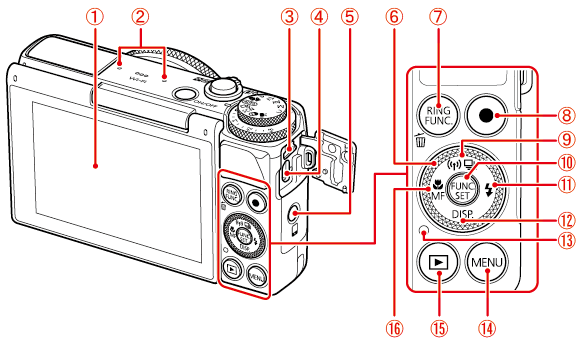

| Screen (LCD monitor)*2 | | [  (Drive mode)] / [  (Wi-Fi)] / Up button |
| Microphone | | FUNC./SET button |
| DIGITAL terminal | | [ (Flash)] / Right button |
| HDMI (TM) terminal | | [  (Display)] / Down button |
| [  (Mobile Device Connection)] button | | Indicator |
| Control dial | | [  ] button |
| [  (Ring function selector)] / [  (Single-image erase)] button | | [  (Playback)] button |
| Movie button | | [  (Macro)] / [  (Manual focus)] / Left button |

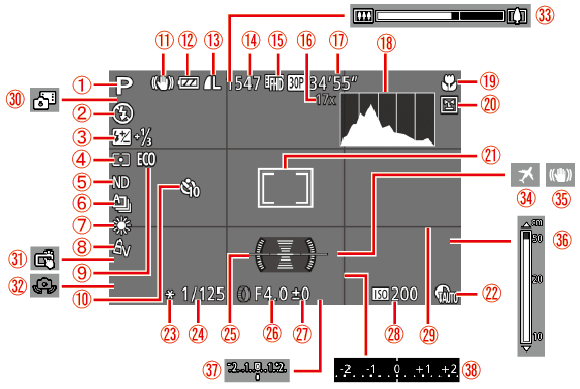

| Shooting mode, Scene icon |  | Blink detection |
| Flash mode |  | AF frame, Spot AE point frame |
| Flash exposure compensation / Flash output level |  | DR correction |
| Metering method, Shadow correction |  | AE lock, FE lock |
| ND filter |  | Shutter speed |
| Drive mode, AEB shooting, Focus bracketing |  | Electronic level |
| White balance, Mercury lamp correction |  | Aperture value |
| My Colors |  | Exposure compensation level |
| Eco mode |  | ISO speed |
| Self-timer |  | Grid lines |
| IS mode icon |  | Hybrid Auto mode |
| Battery level |  | Touch Shutter |
| Still image compression, Resolution |  | Camera shake warning |
| Recordable shots* |  | Zoom bar |
| Movie quality |  | Time zone |
| Digital zoom magnification, Digital tele-converter |  | Image stabilization |
| Remaining time |  | MF indicator |
 | Histogram |  | Exposure level |
 | Focusing range, AF lock |  | Exposure compensation level |
] mode, indicates the number of shots available.
NOTE
- Some information may not be displayed when viewing images on a TV

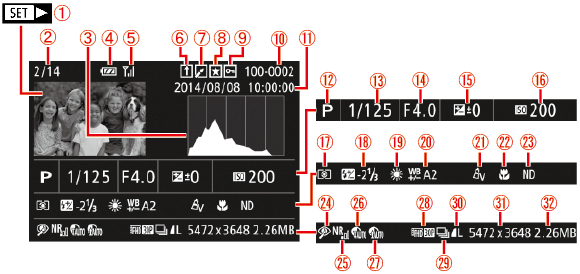

| Movies | | Metering method |
| Current image no. / Total no. of images | | Flash, Flash exposure compensation |
| Histogram | | White balance |
| Battery level | | White balance correction, Mercury lamp correction, Creative Shot effect |
| Wi-Fi signal strength | | My Colors |
| Image Sync | | Focusing range |
| Image editing, Movie compression | | ND filter |
| Favorites | | Red-eye correction |
| Protection | | High ISO NR |
| Folder number - File number | | DR correction |
| Shooting date/time | | Shadow correction |
| Shooting mode | | Image quality / Frame rate (movies) |
| Shutter speed | | Group playback |
| Aperture value | | Compression (image quality) / Resolution, Digest movies, RAW, MP4 (movies) |
| Exposure compensation level | | Still images: Resolution Movies: Playback time |
| ISO speed | | File size |
