Using the Quick Setting Menu Screen (EOS M5)

03-Okt-2016
8203244100

Solusi

Configure commonly used functions in the (Quick Set) menu.
Note that menu items and options vary depending on the shooting mode or playback mode.
IMPORTANT
  • Instructions in this section apply to the camera with [Shooting mode] set to [Program AE] ().

Accessing the Quick Setting Menu
1. Set the camera’s power switch to [ON].

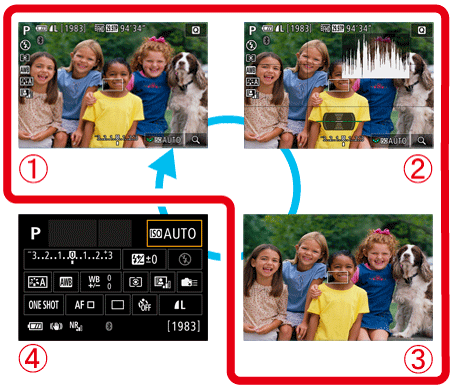

2. If the shooting functions screen () is displayed, press the [INFO.] button to change the screen display ->-> as shown below.
: Custom display 1
: Custom display 2
: No information display
: Shooting functions screen

3. Press the [ ] button.

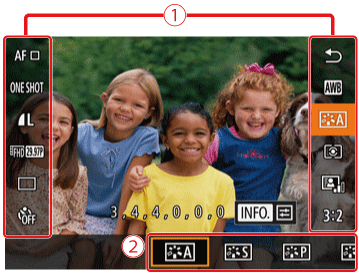

4. Press the [ ], [ ] buttons to choose a menu item .
Available options are shown at the bottom of the screen.
・[Picture style] has been selected in the example image below.



5. Press the [ ], [ ] buttons or turn the [ ] or [ ] dial to choose an option.
NOTE
  • Items labeled with a [INFO.] icon can be configured by pressing the [INFO.] button.

6. Press the [ ] button.
The screen before you pressed the [ ] button in step 3 is displayed again, showing the option you configured.


NOTE
To undo any accidental setting changes, you can restore the camera’s default settings (Restoring Default Camera Settings (EOS M5).

Using Touch-Screen Operations to Configure Settings
You can perform camera operations by touching the screen.
・The following section explains the setting procedures when [Picture Style] has been selected.

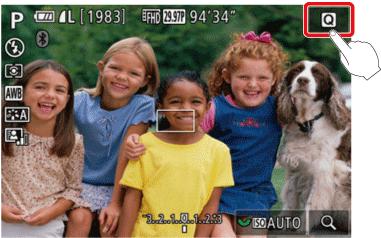

1. Touch [ ] in the upper right of the screen to access the Quick Set menu.

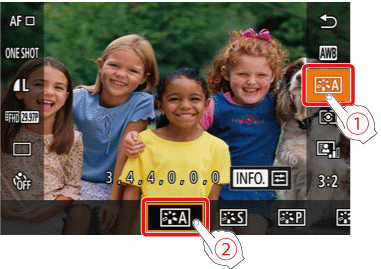

2. Touch a menu item and then an option to complete the setting.

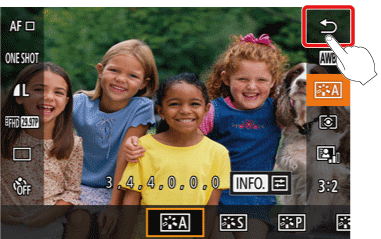

3. To return to the previous screen, touch the [ ] menu item, or touch the selected option again.


REFERENCE
You can access the screen for options labeled with a [INFO.] icon by touching [INFO.].

Setting Up Shooting from a Single Screen
The INFO. Quick Control screen provides convenient, single-screen access to a variety of shooting settings.

1. Set the camera’s power switch to [ON].

2. Press the [INFO.] button a few times to display the INFO. Quick Control () screen.

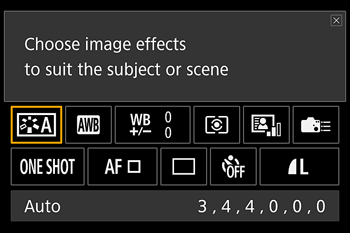

3. To view a description, choose an item by pressing the [ ] [ ] [ ] [ ] buttons.
  • Turn the [ ] [ ] dials to adjust a setting.


NOTE
The items that are displayed and configurable vary by shooting mode.
Some settings are configured on another screen that opens when you select the setting and press the [ ] button. Items labeled with [INFO.] on the second screen can be configured by pressing the [INFO.] button. To return to the INFO. Quick Control screen, press the [ ] button.
REFERENCE
  • You can also access setting screens by touching a setting on the INFO. Quick Control screen and then touching the setting again. To return to the INFO. Quick Control screen, touch [ ].
  • To close a setting description, touch [ ] in the upper right of the description.
