Setting Up the FAX

Last Updated : 25-Jan-2013
Issue Number : 8201744500

To use the fax features of the machine, you can enter the fax settings through the Easy setup.

Press the MENU

button, then select in the order of Setup > Device settings > FAX settings > Start Easy setup or Easy setup > OK button or Start setup.

REFERENCE

Use the

button to select the item, then press the OK button.

Easy setup starts up.

Follow the on-screen instruction to complete the settings in accordance with the operating environment.

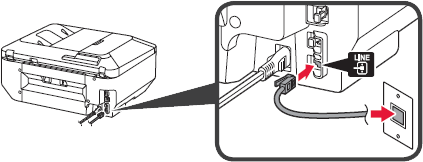

Connect the machine to a telephone jack with the supplied telephone line cable.

The connector is labeled

on the back of the machine.

REFERENCE

A basic connection method is shown in this figure.
Users in Europe: If you prepare your own telephone line cable, be sure it is a 6-wire telephone line cable.

When connecting a telephone or an answering machine, remove the Cap, then connect a telephone or an answering machine with a telephone line cable.

The connector is labeled

on the back of the machine.

REFERENCE

For the details of other settings, refer to the [ Specifying the Basic Settings for Faxing ].
